WPF - 호가창

업비트 실시간 호가를 받아오기위해 홈페이지 참조.

https://docs.upbit.com/docs/upbit-quotation-websocket

업비트 개발자 센터



시세 정보란에 REST API 수신방식과 WebSocket 수신방식이 있는데 나는 WebSocket 방식을 채용함.



참조설정 참고사이트

https://icechou.tistory.com/258

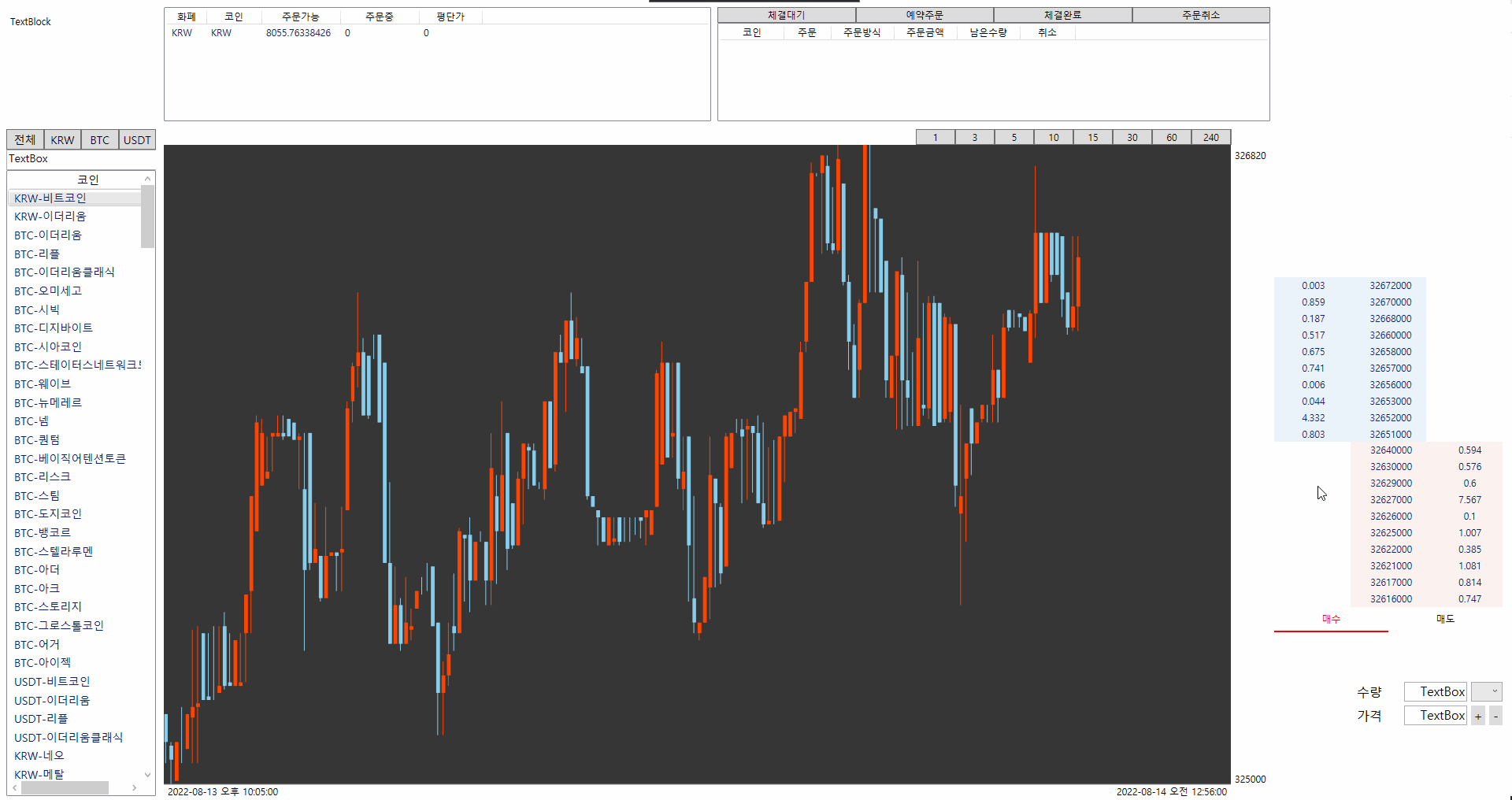

현재 진행한 내용

호가창(현재 1~10호가 까지만 받아오게 설정해둠)

매수 / 매도 활성화버튼 -> 추후 해당 버튼으로 매수 / 매도 할 때 구분해주게함.

//해당버튼 마음에 들어서 나머지 버튼들도 저런 디자인으로 작업할예정



코드 작업은

웹소켓 클래스 하나 작업중 추후 차트 실시간 데이터 추가 함수도 추가 할 예정

매수 매도 클래스 작업예정



호가창 실시간 작업



호가창 XAML(작업중)

<Grid Margin="5" >
        <Grid.RowDefinitions>
            <RowDefinition Height="1*"/>
            <RowDefinition Height="1*"/>
            <RowDefinition Height="240"/>
        </Grid.RowDefinitions>

        <Grid.ColumnDefinitions>
            <ColumnDefinition Width="1*"/>
            <ColumnDefinition Width="1*"/>
            <ColumnDefinition Width="1*"/>
        </Grid.ColumnDefinitions>



        <Grid Grid.Row="2" x:Name="BidAsk" Grid.ColumnSpan="3">
            <Grid.RowDefinitions>
                <RowDefinition Height="32"/>
                <RowDefinition Height="30"/>
                <RowDefinition Height="30"/>
                <RowDefinition Height="30"/>
                <RowDefinition Height="30"/>
                <RowDefinition Height="1*"/>
            </Grid.RowDefinitions>

            <Grid.ColumnDefinitions>
                <ColumnDefinition Width="1*"/>
                <ColumnDefinition Width="1*"/>
            </Grid.ColumnDefinitions>

            <StackPanel Grid.Column="0" Grid.Row="0" >
                <Button x:Name="BtnBid"
                    Click="BtnBid_Click" MouseEnter="BtnBidAsk_MouseEnter" MouseLeave="BtnBidAsk_MouseLeave"
                    Content="매수" Margin="0" Height="30"
                    BorderThickness="0" >
                    <Button.Style>
                        <Style TargetType="{x:Type Button}">
                            <Setter Property="Background" Value="Transparent"/>
                        </Style>
                    </Button.Style>
                </Button>
                <WrapPanel x:Name="BidBottomBar" Height="2"/>
            </StackPanel>

            <StackPanel Grid.Column="1" Grid.Row="0" >
                <Button x:Name="BtnAsk"
                    Click="BtnAsk_Click" MouseEnter="BtnBidAsk_MouseEnter" MouseLeave="BtnBidAsk_MouseLeave"
                    Content="매도" Margin="0"
                    Grid.Column="1" Grid.Row="0" Height="30"
                    BorderThickness="0" Background="Transparent" >
                </Button>
                <WrapPanel x:Name="AskBottomBar" Height="2"/>
            </StackPanel>



            <!-- 매수 매도 수량 입력-->
            <WrapPanel Grid.Row="3" Grid.ColumnSpan="2" HorizontalAlignment="Right">
                <Label Content="수량" FontSize="16" Margin="0,0,18,0"/>
                <TextBox x:Name="TxtQuantity" Text="TextBox" TextWrapping="Wrap" Margin="5,2.5,0,2.5" Height="25" FontSize="16"  Width="80" TextAlignment="Right"/>
                <ComboBox x:Name="CbRatio" Margin="5,2.5,0,2.5" Height="25" FontSize="16" Width="40">
                    <ComboBoxItem Content="최대"/>
                    <ComboBoxItem Content="75%"/>
                    <ComboBoxItem Content="50%"/>
                    <ComboBoxItem Content="25%"/>
                    <ComboBoxItem Content="10%"/>
                </ComboBox>
            </WrapPanel>

            <WrapPanel Grid.Row="4" Grid.ColumnSpan="2" HorizontalAlignment="Right">
                <Label Content="가격" FontSize="16" Margin="0,0,18,0"/>
                <TextBox x:Name="TxtPrice" Text="TextBox" TextWrapping="Wrap" Margin="5,2.5,0,2.5" Height="25" FontSize="16"  Width="80" TextAlignment="Right"/>
                <Button Margin="5,2.5,2.5,2.5" Width="18" FontSize="16" Content="+" BorderThickness="0"/>
                <Button Margin="2.5,2.5,0,2.5" Width="17" FontSize="16" Content="-" BorderThickness="0"/>
            </WrapPanel>
        </Grid>


        <ListView x:Name="LvAsk" Grid.Row="0" Grid.ColumnSpan="2" MinHeight="200" VerticalAlignment="Bottom"
                  ScrollViewer.VerticalScrollBarVisibility="Disabled"
                  ScrollViewer.HorizontalScrollBarVisibility="Disabled"
                  BorderThickness="0"
                  Background="#ecf3fa">
            <ListView.ItemsPanel>
                <ItemsPanelTemplate>
                    <VirtualizingStackPanel VerticalAlignment="Bottom"/>
                </ItemsPanelTemplate>
            </ListView.ItemsPanel>
            <ListView.Resources>
                <!--상단 헤더 안보이게-->
                <Style TargetType="GridViewColumnHeader">
                    <Setter Property="Visibility" Value="Collapsed"/>
                </Style>

                <Style TargetType="ListViewItem">
                    <Setter Property="HorizontalContentAlignment" Value="Center"/>
                </Style>
            </ListView.Resources>
            <ListView.View>
                <GridView>
                    <GridViewColumn Header="Volume" DisplayMemberBinding="{Binding Volume}" Width="96" />
                    <GridViewColumn Header="Price" DisplayMemberBinding="{Binding Price}" Width="100"/>
                </GridView>
            </ListView.View>
        </ListView>

        <ListView x:Name="LvBid" Grid.Row="1" Grid.Column="1" Grid.ColumnSpan="2" MinHeight="200" VerticalAlignment="Top"
                  ScrollViewer.VerticalScrollBarVisibility="Disabled"
                  ScrollViewer.HorizontalScrollBarVisibility="Disabled"
                  BorderThickness="0"
                  Background="#fbf1ef">
            <ListView.Resources>
                <!--상단 헤더 안보이게-->
                <Style TargetType="GridViewColumnHeader">
                    <Setter Property="Visibility" Value="Collapsed"/>
                </Style>

                <Style TargetType="ListViewItem">
                    <Setter Property="HorizontalContentAlignment" Value="Center"/>
                </Style>
            </ListView.Resources>
            <ListView.View>
                <GridView>
                    <GridViewColumn Header="Price" DisplayMemberBinding="{Binding Price}" Width="100"  />
                    <GridViewColumn Header="Volume" DisplayMemberBinding="{Binding Volume}" Width="100" />
                </GridView>
            </ListView.View>
        </ListView>
    </Grid>



호가창 코드(매수 매도부분 작업X)

string Coin = "";
        WebSoketPriceInfo wspi;

        //현재 매수상태인지 매도상태인지
        bool bBidMode = true;//매수
        bool bAskMode = false;//매도


        private static readonly DependencyProperty bidTxtClr = DependencyProperty.Register("BidTxtColor", typeof(Brush), typeof(BidAskView));
        private static readonly DependencyProperty askTxtClr = DependencyProperty.Register("AskTxtColor", typeof(Brush), typeof(BidAskView));
        private static readonly DependencyProperty defaultTxtClr = DependencyProperty.Register("DefaultTxtColor", typeof(Brush), typeof(BidAskView));
        private static readonly DependencyProperty defaultgBackClr = DependencyProperty.Register("DefaultBackColor", typeof(Brush), typeof(BidAskView));
        public Brush BidTxtClr
        {
            get { return (Brush)this.GetValue(bidTxtClr); }
            set { this.SetValue(bidTxtClr, value); }
        }
        public Brush AskTxtClr
        {
            get { return (Brush)this.GetValue(askTxtClr); }
            set { this.SetValue(askTxtClr, value); }
        }
        public Brush DefaultTxtClr
        {
            get { return (Brush)this.GetValue(defaultTxtClr); }
            set { this.SetValue(defaultTxtClr, value); }
        }
        public Brush DefaultBackClr
        {
            get { return (Brush)this.GetValue(defaultgBackClr); }
            set { this.SetValue(defaultgBackClr, value); }
        }


        public BidAskView()
        {
            InitializeComponent();
        }

        public void SetCoin(string coin)
        {
            //코인데이터를 읽어옴
            Coin = coin;
            if (wspi == null)
                wspi = new WebSoketPriceInfo(coin: Coin, lvbid: LvBid, lvask: LvAsk);
            else
                wspi.SetChangeCoin(Coin);

        }
        private void BtnAsk_Click(object sender, RoutedEventArgs e)
        {
            //매도로 활성화
            bAskMode = !bAskMode;
            bBidMode = !bBidMode;

            //매수버튼 글자색 기본으로 변경
            BtnBid.Foreground = DefaultTxtClr;
            BidBottomBar.Background = DefaultBackClr;
        }

        private void BtnBid_Click(object sender, RoutedEventArgs e)
        {
            //매수로 활성화
            bAskMode = !bAskMode;
            bBidMode = !bBidMode;

            //매도색 글자색 기본으로 변경
            BtnAsk.Foreground = DefaultTxtClr;
            AskBottomBar.Background = DefaultBackClr;
        }

        private void BtnBidAsk_MouseEnter(object sender, MouseEventArgs e)
        {
            if((string)(((Button)sender).Content) == "매수")
            {
                ((Button)sender).Foreground = BidTxtClr;
                BidBottomBar.Background = BidTxtClr;
            }
            else
            {
                ((Button)sender).Foreground = AskTxtClr;
                AskBottomBar.Background = AskTxtClr;
            }
        }

        private void BtnBidAsk_MouseLeave(object sender, MouseEventArgs e)
        {
            if ((string)(((Button)sender).Content) == "매수")
            {
                if (!bBidMode)
                {
                    ((Button)sender).Foreground = DefaultTxtClr;
                    BidBottomBar.Background = DefaultBackClr;
                }
            }
            else
            {
                if (!bAskMode)
                {
                    ((Button)sender).Foreground = DefaultTxtClr;
                    AskBottomBar.Background = DefaultBackClr;
                }
            }

        }



 웹소켓 클래스(추후 차트 실시간 함수도 추가해야함)

WebSocket ws;
        string Coin = "";
        string url = "wss://api.upbit.com/websocket/v1";
        object bid;
        object ask;
        bool Connect = false;
        public WebSoketPriceInfo(string coin="",object lvbid = null, object lvask = null)
        {
            //코인정보를 넘겨받음
            Coin = coin;
            this.bid = lvbid;
            this.ask = lvask;

            ws = new WebSocket(url);
            ws.OnOpen += ws_open;
            ws.OnClose += ws_close;
            ws.OnMessage += ws_message;
            ws.Connect();
        }
        public void SetChangeCoin( string coin)
        {
            //다른 코인을 불러올때 사용.
            //미리 생성했던 소켓을 종료하지않고 다시 생성해서
            //이전 데이터랑 같이 불러와지는 문제가 생겨서 추가함
            ws.Close();

            Coin = coin;
            ws = new WebSocket(url);
            ws.OnOpen += ws_open;
            ws.OnClose += ws_close;
            ws.OnMessage += ws_message;
            ws.Connect();
        }
        private void ws_connect()
        {

        }
        private void ws_open(object sender, EventArgs e)
        {
            JArray array = new JArray();
            //실시간 데이터 받아올 코인
            //형태 -> (코인종류).(받아올호가) 만약 .5면 1~5호가를 가져옴
            array.Add(Coin + ".10");

            JObject obj1 = new JObject();
            obj1["ticket"] = Guid.NewGuid().ToString();//UUID
            JObject obj2 = new JObject();
            obj2["type"] = "trade";
            obj2["codes"] = array;
            JObject obj3 = new JObject();
            obj3["type"] = "orderbook";
            obj3["codes"] = array;

            //format을 SIMPLE로 받을경우 축약형으로 들어옴.
            JObject obj4 = new JObject();
            obj4["format"] = "SIMPLE";
            obj4["codes"] = array;
            ws.Send(string.Format("[{0},{1},{2},{3}]", obj1.ToString(), obj2.ToString(), obj3.ToString(), obj4.ToString()));
            //tradeserver.Enabled = true;
        }

        private void ws_close(object sender, EventArgs e)
        {
            Connect = false;
            //MessageBox.Show("WebSocket Close");
        }

        private void ws_message(object sender, MessageEventArgs e)
        {
            Connect = true;
            JObject jsonArray = JObject.Parse(Encoding.UTF8.GetString(e.RawData));
            List<Structs.PriceItem> Bid = new List<Structs.PriceItem>();
            List<Structs.PriceItem> Ask = new List<Structs.PriceItem>();
            foreach (var items in jsonArray.Children())
            {
                //호가 데이터 영역
                if (items.Path == @"obu")
                {
                    JArray jsonArray_child = JArray.Parse(items.First.ToString());

                    foreach (var item in jsonArray_child.Children())
                    {
                        //가격 / 잔량
                        Ask.Add(new Structs.PriceItem { Price = Convert.ToDouble(item["ap"].ToString()), Volume = Math.Round(Convert.ToDouble(item["as"].ToString()),3) });
                        Bid.Add(new Structs.PriceItem { Price = Convert.ToDouble(item["bp"].ToString()), Volume = Math.Round(Convert.ToDouble(item["bs"].ToString()),3) });
                    }
                }


            }
            GetPriceVolumeData(Bid,Ask);
        }
        List<Structs.PriceItem> Biditems = new List<Structs.PriceItem>();
        List<Structs.PriceItem> Askitems = new List<Structs.PriceItem>();
        private void GetPriceVolumeData(List<Structs.PriceItem> Biditems, List<Structs.PriceItem> AskItems)
        {
            //소켓데이터에서 받아와서 데이터를 저장시킴
            //매도 잔량은 역순으로 출력해야 정방향
            AskItems.Reverse();
            this.Biditems = Biditems;
            this.Askitems = AskItems;

            if(ask != null && bid != null)
            {
                AddAsk(Askitems);
                AddBid(Biditems);
            }
        }

        //외부 컨트롤에 데이터를 넣기위해서 델리게이트 사용
        delegate void Dgt_AddItems(List<Structs.PriceItem> items);
        private void AddAsk(List<Structs.PriceItem> items)
        {
            if (((ListView)ask).Dispatcher.Thread == Thread.CurrentThread)
            {
                ((ListView)ask).ItemsSource = Askitems;

            }
            else
            {
                Dgt_AddItems t = AddAsk;

                object[] objs = new object[] { items };
                ((ListView)ask).Dispatcher.BeginInvoke(t, objs);
            }
        }

        private void AddBid(List<Structs.PriceItem> items)
        {
            if (((ListView)ask).Dispatcher.Thread == Thread.CurrentThread)
            {
                ((ListView)bid).ItemsSource = Biditems;
            }
            else
            {
                Dgt_AddItems t = AddBid;

                object[] objs = new object[] { items };
                ((ListView)bid).Dispatcher.BeginInvoke(t, objs);

            }
        }


        public object GetAskItems()
        {
            //매도 호가창 데이터 필요할까봐 만들어둠.
            if (Connect)
                return Askitems;
            else
                return null;
        }
        public object GetBidItems()
        {
            //매수 호가창 데이터 필요할까봐 만들어둠.
            if (Connect)
                return Biditems;
            else
                return null;
        }



남은작업

 - 매수 매도 클래스 생성.

 - 실시간 차트 함수 작업.
